Description

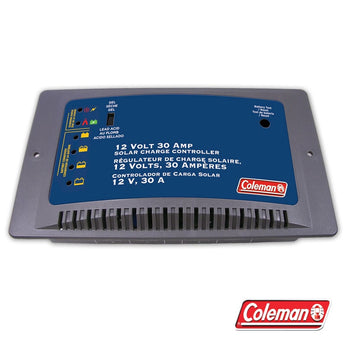

Coleman 68022 30 Amp Charge Controller
The Coleman 68022 is a 30A digital charge controller that goes between your solar panel and your 12V battery to prevent over-charging or over-discharging your battery.Features and Benefits
- Protect Your Battery from Overcharge and Discharge
- For Use with 12 Volt Solar Panels and Batteries Only
- Handles up to 30 Amps of Array Current
- Handles up to 450 Watts of Solar Power
- Maintenance Free Protection of Your Solar Panel and Batteries
- Maintain 12V Batteries in a Fully Charged State
- Dimensions (L x W x H): 8 3/4" x 10 1/4" x 2 5/8" (22.5 x 26 x 6.5cm)
- Weight: 0.85 lbs
- Manufacturer's Part Number: 68022
- Electrical
- Normal Input (Solar Cell Array Voltage): 17-22 volts
- Maximum Input: 25 volts
- Maximum charging current: 30 amps
- Current Consumption Without Battery: 35mA Max
- Current Consumption Without Array: 25mA Max
- PWM constant voltage for Gel Cell battery: 14.1 volts ±0.4
- PWM constant voltage for Lead Acid battery: 14.5 ±0.4
- Float mode voltage: 13.4 ±0.4
- Battery Condition Display
- LED Color: Indicated Range
- LOW (Red): <11.5 ±0.4
- FAIR (Yellow): 11.5 to 12.5 ±0.4
- GOOD (Green): >12.5 ±0.4
- LCD Meter Accuracy DC voltage: 1.25%
- LCD Meter Accuracy DC current: 3%
- Protection
- Over temperature protection engages at (stop charging): >80°C (176°F)
- Over temperature protection resets at (restart charging): <65°C (149°F)
- Operation Temperature: -5° to 50°C (23° to 122°F)
- Storage Temperature: -10° to 70° C (14° to 158°F)
- Operation Humidity Range: 0 to 80% RH
Item Details
| Brand | Coleman |
| SKU | COLEMAN-68022 |
| Manufacturer Part Number | 68022 |
| UPC | 787769680222 |
Specifications
Unit Dimensions
| Length | 8.75 in (222 mm) |
| Width | 10.25 in (260 mm) |
| Height | 2.625 in (67 mm) |
| Weight | 13.6 oz (386 g) |
Packaging/Shipping Dimensions
| Shipping Weight | 0.32 lb |
Additional Details
| Warranty | Battery Junction Warranty |
