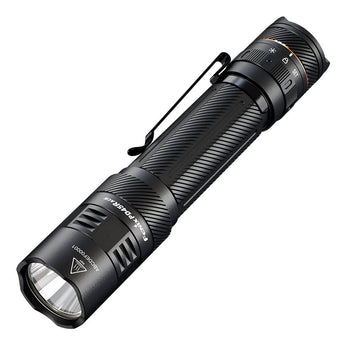

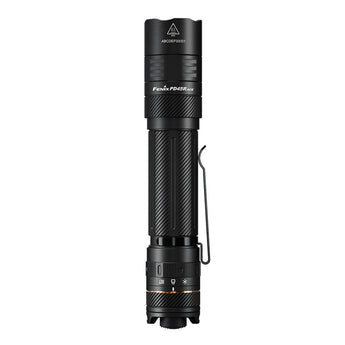

Fenix PD45R ACE USB-C Rechargeable LED Flashlight - 3200 Lumens - Luminus SFT70-Gen2 - Includes 1 x 21700
Item #:
FENIX-PD45R-ACE
Brand:
Fenix
Item #:
FENIX-PD45R-ACE
Brand:
Fenix
- Advanced Command Edition flashlight with refined control system
- Fast access to 3200-lumen max output + strobe for rapid reactions
- Select the best output pattern for you with the innovative SET mode
- In-body USB-C port provides full recharge in just 3 hours
- Rechargeable li-ion battery included for runtimes reaching 57hrs
Description
Brand | Fenix |
---|---|
Series | PD (Professional Performance) |
MPN | PD45R-ACE |
Color | Black |
Activity | Camping, Every Day Carry, Hiking, Hunting, Law Enforcement, Outdoor, Tactical |
Light Source | 1 x Luminus SFT70-Gen2 (SFT-70X-WS65-H2-H1652) LED |
Max Throw | 1345ft / 410m |
Peak Intensity | 41900cd |
IP Rating | IP68 |
Depth Rating | 6.6 ft (2 m) |

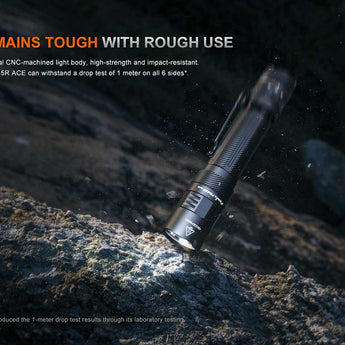

Drop Resistance | 3.28 ft (1 m) |
Switch | Tail Switch and Selector Ring |
Material | Anodized Aluminum |
Battery Size | 1 x 21700 |
---|---|
Batteries Included? | Yes |
Included Model | Fenix ARB-L21-6000 (3.6V, 6000mAh Rechargeable Li-Ion 21700 Battery) |
Rechargeable | Yes |
Charge Style | In-Body Rechargeable |
USB-C | |
Max Charge Speed | 18W |
Charge Time | 3 Hours |
Working Voltage | 3.0V - 4.2V |
Indicator Type | LED |
---|---|
Each time the light is turned on, the indicator will show the current battery level and will stay illuminated for 3 seconds. | |
100% – 85% | Constant Green Light |
85% – 50% | Flashing Green Light |
50% – 25% | Constant Red Light |
25% – 1% | Flashing Red Light |
Length | 6.21" / 157.7mm |
---|---|
Head Diameter | 1.18" / 30mm |
Body Diameter | 1.02" / 25.9mm |
Weight | 7.07oz / 200.5g |
(Including Battery) |

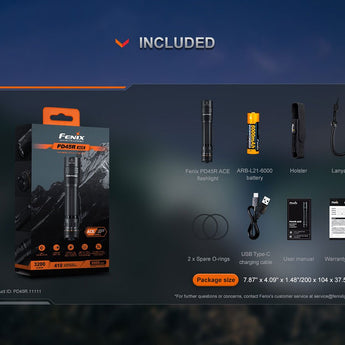

Fenix PD45R ACE Flashlight |
1 x 6000mAh 21700 Battery |
Steel Body Clip |
Holster |
Lanyard |
USB-C Charge Cable |
2 x Spare O-Rings |
User Manual |
Certifications | ANSI, CE, FCC |
---|---|
Country of Origin | China |
UPC | 6942870311883 |
Warranty | Fenix 5 Year Warranty, Fenix Limited Lifetime Warranty |
Battery Junction 30-Days | |
Return Policy | Battery Junction Return Policy |

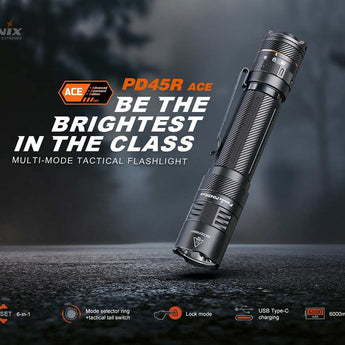

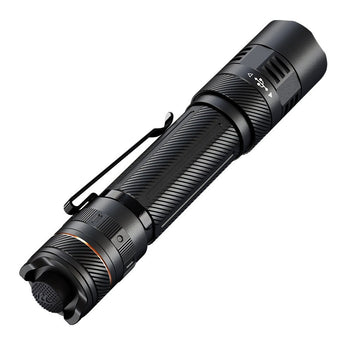

Fenix PD45R ACE (Advanced Command Edition)
Tactical Flashlight with Customizable Outputs

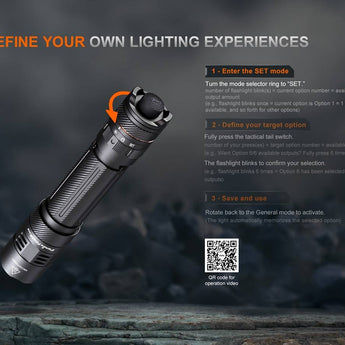

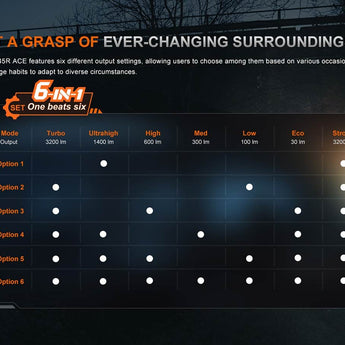

For a flashlight with refined, fast-access controls and ultra-high performance, look no further than the Fenix PD45R ACE! Equipped with a next-level Luminus SFT70-Gen2 LED package, the PD45R ACE boasts a max output of 3,200 lumens reaching over 1,300 feet, with peripheral spill to grant you total situational awareness. This model is also upgraded to a one-stop tactical illumination command center with the addition of the ACE (Advanced Command Edition) control system. Comprised of an intuitive multi-stage tail switch and mode selector ring, this setup lets you access any output in moments to adjust to the full range of scenarios encountered on patrol or during outdoor adventures. The feature that really sets the PD45R ACE apart from the rest, however, is its customizable outputs. Simply by activating the SET mode with the selector ring, you will be able to choose your favorite output programming from 6 preset patterns to give you the fastest possible access to the settings you need most!
Law Enforcement & Outdoor Powerhouse

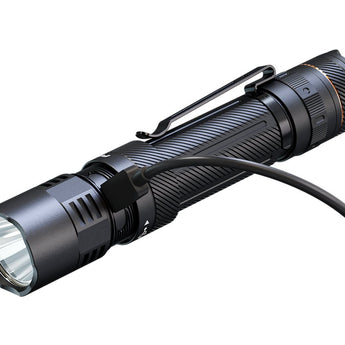

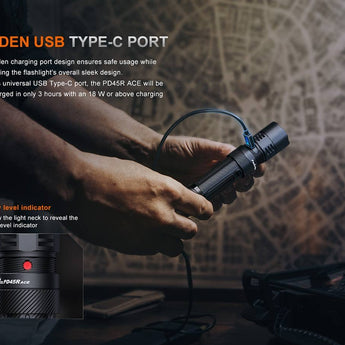

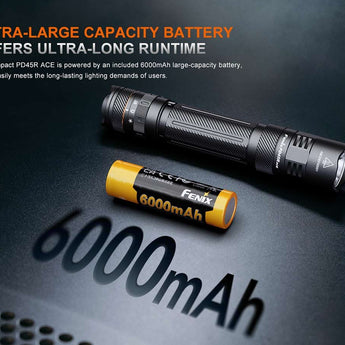

The PD45R ACE has an ace up its sleeve with its best-in-class included 21700 battery that boasts an ultra-high capacity of 6,000mAh. As a result, this flashlight offers ranging from 2.3 hours on Turbo to 57 hours on the Eco brightness level. When you need to power up, the PD45R ACE can be recharged in just 3 hours via the in-body USB-C port. The paired battery indicator will keep you apprised of your battery status at a glance. Because the charge port and indicator are secured beneath the light head, the light earns an IP68 rating that will weather any storm and can be used in every kind of environment. This makes it a great handheld light for all outdoor or tactical applications.
Daily-Carry Build with Broad Accessory Compatibility

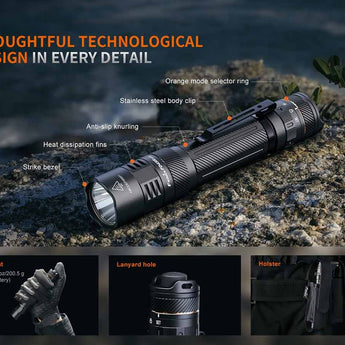

With a weight signature of 7.07oz, the PD45R ACE is made with aircraft aluminum that is both highly durable and portable. Keep it on standby for daily use with the included metal body clip, lanyard, and holster carrying options. The PD45R ACE will even help you navigate emergencies thanks to its low-profile, glass-breaking strike bezel.

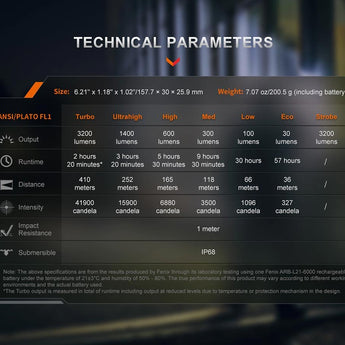

Turbo | Ultrahigh | High | Medium | Low | Eco | Strobe | |
Brightness | 3200lumens | 1400lumens | 600lumens | 300lumens | 100lumens | 30lumens | 3200lumens |
---|---|---|---|---|---|---|---|
Runtime | 2.33*hours | 3.33hours | 5.5hours | 9.5hours | 30hours | 57hours | - |
Distance | 410meters | 252meters | 165meters | 118meters | 66meters | 36meters | - |
Intensity | 41900candela | 15900candela | 6880candela | 3500candela | 1096candela | 327candela | - |
Notice
All data was generated in a Fenix lab. Differences may happen based on usage and conditions.*The Turbo output is measured in total runtime including output at reduced levels due to temperature or protection mechanism in the design.
- Notable Features
- » Rechargeable 21700 battery has a best-in-class capacity of 6000mAh enabling runtimes that outlast any operation or outing

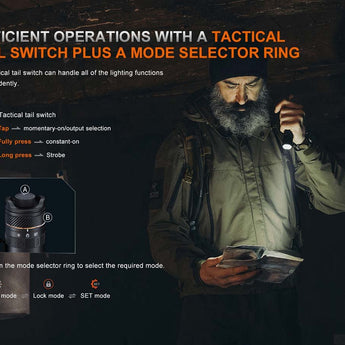

- » ACE controls make it easy to get the setting you need in a heartbeat or less thanks to the multi-stage tail switch and mode selector ring
- » Equipped with a Luminus SST70-Gen2 LED that emits a long-range 1345ft light beam with excellent peripheral awareness
- » Weighs the same as a roll of nickels for simple standby carry via the bonus body clip, lanyard, or holster

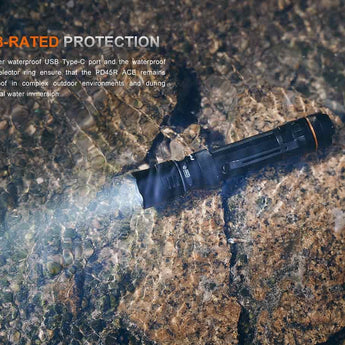

- » IP68 waterproofing fights off elements from sand to snow for reliable daily use in outdoor or tactical scenarios - Submersible up to 6.6 feet for 30 minutes!
- » Wide compatibility with rail mounts and remote pressure switch solutions for long arms transform the PD45R ACE into a weapon light for military, self-defense, or hunting
