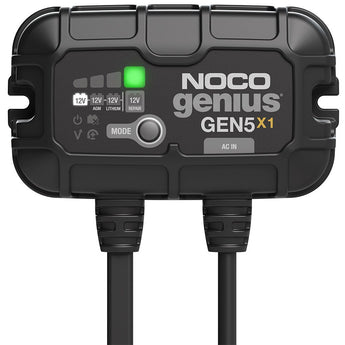

NOCO GEN5X1 1-Bank 5A Onboard Battery Charger
Item #:
NOCO-GEN5X1
Brand:
NOCO
Item #:
NOCO-GEN5X1
Brand:
NOCO
- 1-bank on-board battery charger for a wide range of lead-acid and lithium batteries
- Maintains battery health after achieving full charge so you can set it and forget it

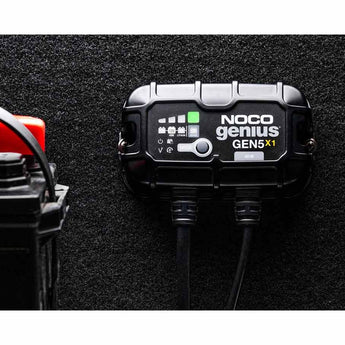

- Easy to assemble mounting system - charger has anti-vibration backing to isolate shock

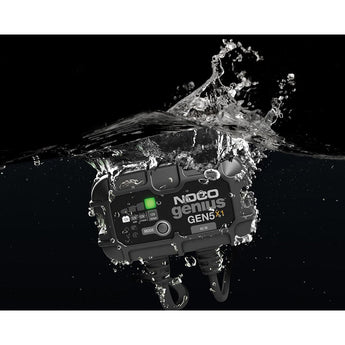

- IP68 waterproofing makes it able to withstand hours underwater
Description
Brand | NOCO |
---|---|
MPN | GEN5X1 |
Series | Gen |
Color | Black |
Activity | Marine, Auto, Lawn and Garden, Emergencies |
Compatible Batteries | Lead-Acid and Lithium |
IP Rating | IP68 |
DC Fuse Size | 7.5 Amp Mini Blade Fuse |
Charging Modes | 12V, 12V AGM, 12V Lithium, Repair Mode, Force Mode |
---|---|
Charging Times | |
20Ah | 3 hours |
40Ah | 6 hours |
80Ah | 12 hours |
100Ah | 15 hours |
120Ah | 18 hours |
Built-in Safety Protections | Short-Circuit, Open-Circuit, Overheating, Overcharge, Spark-Proof, Reverse Polarity |
---|---|
Battery Indicator | Yes - LED Display |
Ambient Temperature | -4° to 122° F (-20° to +50° C) |
Length | 3.8" / 95.2mm |
---|---|
Width | 5.1" / 129.2mm |
Height | 1.9" / 49mm |
Weight | 47.2oz / 1.34kg |
DC Cable and Eyelet Length | 72" / 1.8m |
AC Cable Length | 72" / 1.8m |
DC Cable Size | 16AWG |
AC Cable Size | 18AWG |
GEN5X1 On-Board Battery Charger |
2 x Self-Tapping Screws |
User Guide and Warranty |
Certifications | ANSI, CE, IP68, RoHS, FCC |
---|---|
UPC | 46221190441 |
Country of Origin | USA |
Warranty | NOCO 3 Year Limited Warranty |
Battery Junction 30-Days | |
Return Policy | Battery Junction Return Policy |
NOCO GEN5X1 1-Bank 5A On-Board Battery Charger
Unrivaled Power
More power, less space. The NOCO GEN5X1 On-Board Battery Charger packs a massive punch. This compact charger is half the size of its predecessors yet puts out almost double the power. With an output power of 75 watts, you can recharge a large range of battery sizes in just hours!
Automatic Precision Charging
Internal temperature sensors ensure the GEN5X1 delivers a full charge in any environment. The automatic adjustment will reduce the instance of under- or over-charging in extreme conditions. Plus with voltage sensing, you can leave your battery plugged in for as long as you'd like. The GEN5X1 will switch to providing ongoing maintenance once a full charge is achieved.
The Easiest Charger to Use
Absolutely anyone can use this charger with its fully automatic features. The specialized design can auto-detect damaged batteries and repair them without any user intervention. Plug it in and leave it. Take the complication out of battery maintenance!
- Notable Features
- » 5 charging modes for increased versatility - charges a wide variety of SLA or Li-Ion batteries
- » Force mode allows you to charge batteries that are below 1V
- » Auto-detects damage and intuitively repairs it to give your old batteries renewed life
- » LED indicators let you know if there is High Voltage detected, Bad Battery that cannot be charged, Reverse Polarity for your protection, and Standby Mode to protect your batteries
- » Charges 1 bank on-board fully automatically, so you can leave it with confidence that it won't overcharge your battery
- » Charger functions perfectly in any direction, even upside-down, and has anti-vibration backing to help isolate shock
