Power-Sonic AGM General Purpose PS-1230 3.4Ah 12V Rechargeable Sealed Lead Acid (SLA) Battery - F1 Terminal
Item #:
POWERSONIC-PS-1230-F1
Brand:
Power-Sonic
Item #:
POWERSONIC-PS-1230-F1
Brand:
Power-Sonic
- General purpose, rechargeable SLA battery boosted by AGM technology
- 12V power and 3.4Ah capacity provides long runtimes for a wide range of applications

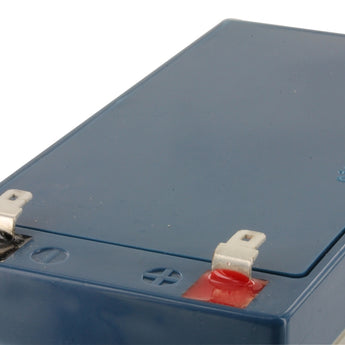

- F1 terminals allow for easy connection to diverse devices
- Valve-regulated construction is spill-proof, allowing operation in any orientation
Related Products
Description
| Brand | Power-Sonic |
|---|---|
| MPN | PS-1230-F1 |
| Series | PS |
| Size | SLA |
| Chemistry | Sealed Lead Acid |
| Voltage | 12.0V (6 Cells) |
| Capacity | 3400mAh |
| 20-Hour (170mA to 10.50V): 3.40Ah 10-Hour (330mA to 10.50V): 3.30Ah 5-Hour (580mA to 10.20V): 2.90Ah 1-Hour (2.2A to 9.00V): 2.20Ah | |
| Terminal | F1 |
| Case | ABS Plastic |
| Internal Resistance (approx.) | 45.0 milliohms |
|---|---|
| Max Short-Duration Discharge Current (10 Sec.) | 34A |
| Shelf Life (% of nominal capacity at 68°F/20°C) | 1 Month: 97% 3 Months: 91% 6 Months: 83% |
| Operating Temperature Range | Charge: 5°F (-15°C) to 122°F (50°C) Discharge: -4°F (-20°C) to 140°F (60°C) |
| Power-Sonic Chargers | PSC-12500A-C, PSC-12500-PC |
| Length | 5.24" / 133mm |
|---|---|
| Width | 2.64" / 67mm |
| Height | 2.60" / 66mm |
| Weight | 2.90 lbs / 1.32kg |
| Cross-References | V/AH 12/3.4 |
|---|---|
| Application Type | General Purpose |
| General Purpose Security and Fire Systems Medical Devices Emergency Lighting UPS Systems | |
| Medical Device Compatibility | |
| Aeros Instruments (Ohio Medical): CARE-E-VAC II ASPIRATOR Baxter Healthcare Corp.: FLO-GARD 6300 Bear Medical Systems (CareFusion Respiratory): BEAR 33 CareFusion Alaris / 303: IMED GEMINI LOGIC BOARD PC-4 Draeger Inc.: EVITA, SAVINA XL Newport Medical Instruments (a division of Covidien): E150 VENTILATOR Sabratek Corp.: 3030 INFUSION PUMP Schuco (Allied Healthcare): OPTI VAC L190 Siemens Medical Solutions: 9000XL, SC7000 Sunrise Medical: PATIENT LIFT EMD 1800 Vyaire Medical Inc.: BEAR 33 | |
| Certifications | CE, UL |
|---|---|
| Country of Origin | China |
| Warranty | Power-Sonic 2 Year Warranty |
| Battery Junction 30-Days | |
| Return Policy | Battery Junction Return Policy |

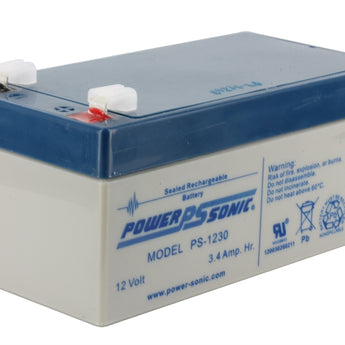

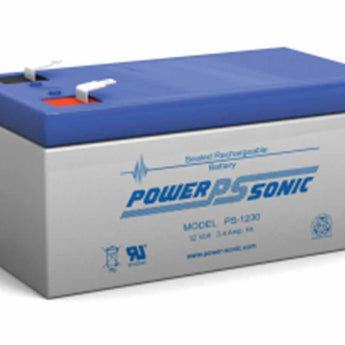

Power-Sonic PS-1230
Improved Power Storage and Fortified Design

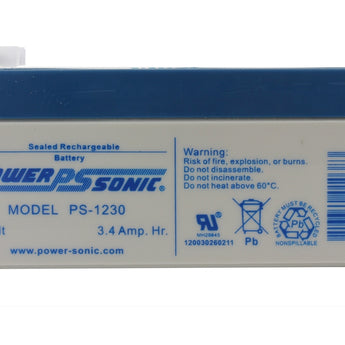

Power-Sonic releases the PS-1230 sealed lead acid battery as part of their 12-volt SLA collection. F1 terminals deliver a consistent 12-volts from the PS-1230's AGM core. AGM technology stores electricity safely, without any free flowing battery acid. ABS Plastic fortifies the overall structural integrity of the battery for increased impact resistance. The PS-1230 is rated for 3.4AH.
- Notable Features
- » Absorbent Glass Mat (AGM) technology for superior performance
- » Valve regulated, spill proof construction allows safe operation in any position
- » Power/volume ratio yielding unrivaled energy density
- » Rugged impact resistant ABS case and cover (UL94-HB)
- » Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
- » U.L. recognized under file number MH 20845
