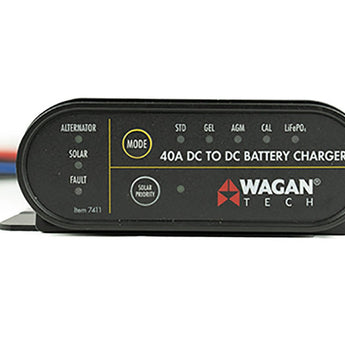

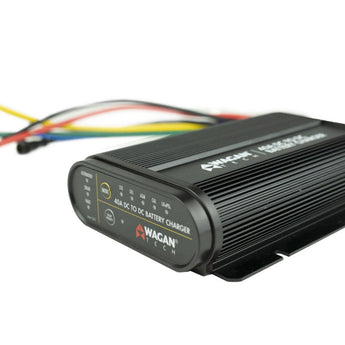

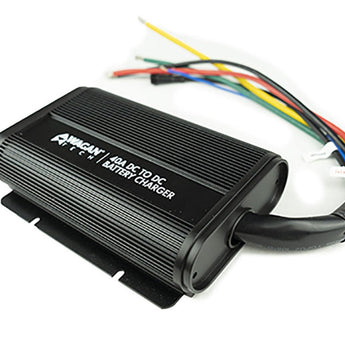

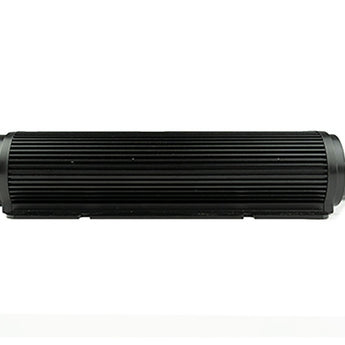

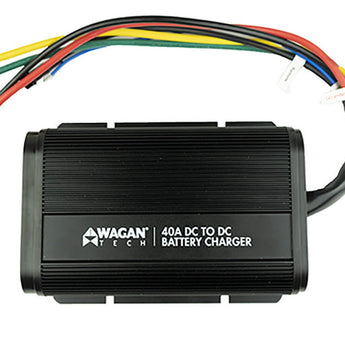

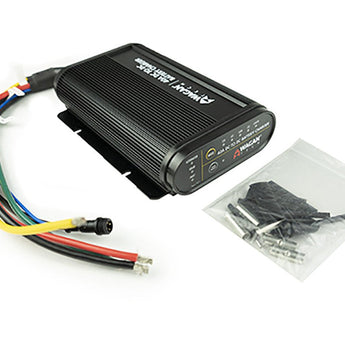

Wagan 40A DC to DC Battery Charger
- 40A DC to DC charger is perfect for accurate and safe charging of auxiliary batteries
- 3-Stage charging process ensures full and complete charge of battery
- Compact size plus integrated mounting plate makes installation easy
- IP66 water- and dust-proof rating allows user to install charger on a variety of applications
| Brand | Wagan |
|---|---|
| MPN | 7411 |
| Color | Black |
| Compatible Batteries | SLA Flooded Lead-Acid Gel AGM Calcium LiFePo4 Lithium Iron Phosphate |
| IP Rating | IP66 |
| Maximum Input Current | 45A |
|---|---|
| DC Input Range | 9V-32VDC |
| Solar Input Trigger | 12V |
| Max Solar Input | 32VDC |
| Input Fuse | 60A |
| Not Included | |
| Output Voltage | 6V/12V |
|---|---|
| Maximum Output Current | 40A |
| Ambient Load | <10mA |
| Back Drain | <15mA |
| Max Output Power | 500W |
| Output Fuse | 60A |
| Not Included | |
| Built-in Safety Protections | Over-Charge Over-Heat Over- and Under-Voltage Reverse Polarity |
|---|---|
| Battery Indicator | Yes |
| Operating Temperature | -4ºF to 176ºF (-20ºC to 80ºC) |
| Length | 7.3" / 185.42mm |
|---|---|
| Width | 5.1" / 129.54mm |
| Height | 1.7" / 43.18mm |
| Weight | 22.4oz / 635.03g |
| 40A DC to DC Battery Charger |
| User Manual |
| Certifications | ANSI, IP66, CE, BC |
|---|---|
| Country of Origin | China |
| Warranty | Wagan Limited Warranty |
| Battery Junction 30-Days | |
| Return Policy | Battery Junction Return Policy |
Wagan 40A DC to DC Battery Charger
Complete Your Solar System
Wagan's 40A DC to DC Battery Charger is the reliable equipment you need in your solar energy system. This device delivers a safe, effective charge. The 40A DC to DC Battery Charger can handle solar panels with up to 600W combined in 12V systems and 1200W combined in 24V systems.
3-Stage Charging Process
Achieve a full, enhanced charge thanks to Wagan's 3-Stage Charging system. Bulk charge is achieved in the first stage to charge the battery fast. The second stage, Absorption, ensures the battery receives a full charge. The final stage, Float, monitors your battery and keeps it maintained at a safe voltage so that it is ready to use wherever you are.
Easy Installation

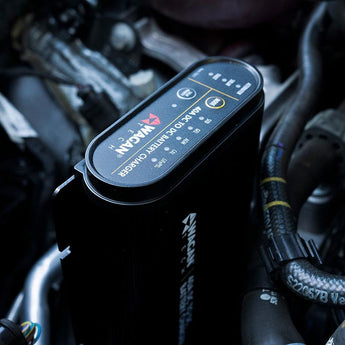

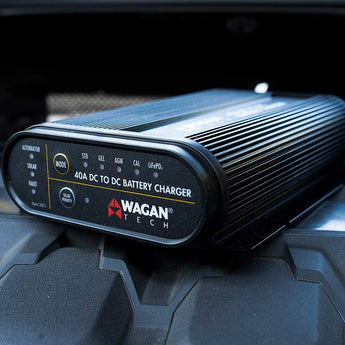

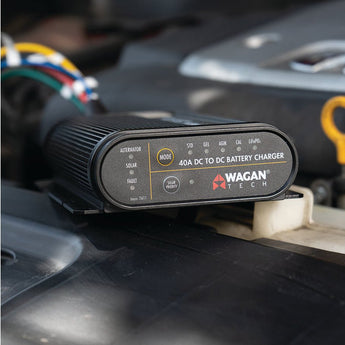

Hard-mount this charger with ease and peace of mind thanks to its straightforward mounting system and integrated safety protections! The compact size plus integrated mounting plate make it easy for you to find a place to mount it. An IP66 rating keeps your charger sealed and protected from water and dust. There are also built-in protections from sparks, over- or under-voltage, reverse connection, and over-temperature. With extra protection from vibration and heat, the 40A DC to DC Battery Charger is equipped to be mounted in vans, RVs, boats, or outdoor power systems!
- Notable Features
- » Built to handle solar panels up to 600W combined in 12V systems and 1200W combined in 24V systems
- » 3-Stage charging system ensures full and safe charge is delivered to your auxiliary battery
- » Color-coded wires make it straightforward to establish clear routing locations
- » Compact size plus IP66 waterproof rating makes it easy to install anywhere
- » Integrated mounting plate makes installation simple
-
-
